Yamaha VC8NW Ceiling Speaker – White
AED688
2-way system with 8-inch woofer and 1-inch tweeter, no back can
- Engineered for optimum BGM and voice reproduction
- No back can low-profile design allows installation in limited ceiling spaces
- Direct support for low-impedance or high-impedance connections
- 16Ω in low-impedance is advantageous when connecting multiple speakers in low impedance system
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions available
- 2.8 kg (6.2 lbs), Ø325 x D117 mm (Ø12-3/4” x D4-5/8”)
- Single unit package
100% Original Yamaha Product
Compare
15
People watching this product now!
Description
| Speaker type | 2way Coaxial type (without backcan) | |
|---|---|---|
| Frequency range (-10dB) | 52 Hz – 20 kHz (Half-space 2π) | |
| Nominal coverage | 110゜conical (Half-space 2π) | |
| Components | LF | 8” Cone |
| HF | 1″ Soft dome | |
| Power rating | NOISE | 25 W |
| PGM | 50 W | |
| PEAK | 100 W | |
| Nominal impedance | 16 Ω | |
| Transformer taps | 100V | 12 W, 6 W, 3 W |
| 70V | 12 W, 6 W, 3 W, 1.5 W | |
| SPL | Sensitivity (1W; 1m on axis) | 91 dB SPL (Half-space 2π) |
| Peak (Calculated) | 111 dB SPL (Calculated, 1 m) | |
| I/O connectors | Push terminal (WAGO 294 /2 pin) × 1, Wire size : Solid conductor Min. AWG18 (0.75 sq) / Max. AWG12 (3.5 sq), Standard conductor Min. AWG18 (0.75 sq) / Max. AWG14 (2 sq) | |
| Protection circuit | Load protection | Full-range power limiting to protect network and transducers |
| Finish | VC8NB: Black (approx. Munsell N3), VC8NW: White (approx. Munsell N9.3) | |
| Dimensions | Diameter | 325 mm (12 – 3/4″) |
| D | 131 mm (5 – 1/8″) | |
| Net weight | 2.8 kg (6.2 lbs) | |
| Cutout size | Ø285 mm (Ø11 – 1/4″) | |
| Required ceiling board thickness | 2 mm – 37 mm | |
| Accessories | C-Ring, Tile Rails x 2, Grille, Safety wire, Cutout template, Owner’s Manual | |
| Packaging | Single package | |
| Certificate | UL1480, UL2043, NFPA70, CE, EAC, RoHS | |
| Options | – | |
Additional information
| Brand | Yamaha |
|---|
Reviews (0)
About brand
Yamaha offers a diverse range of high-quality audio equipment, including speakers, mixers, and musical instruments. Known for their exceptional sound quality and innovation, Yamaha products are ideal for musicians, audio professionals, and enthusiasts seeking reliable performance.
Shipping & Delivery
Connect with us via What's app !
Related products

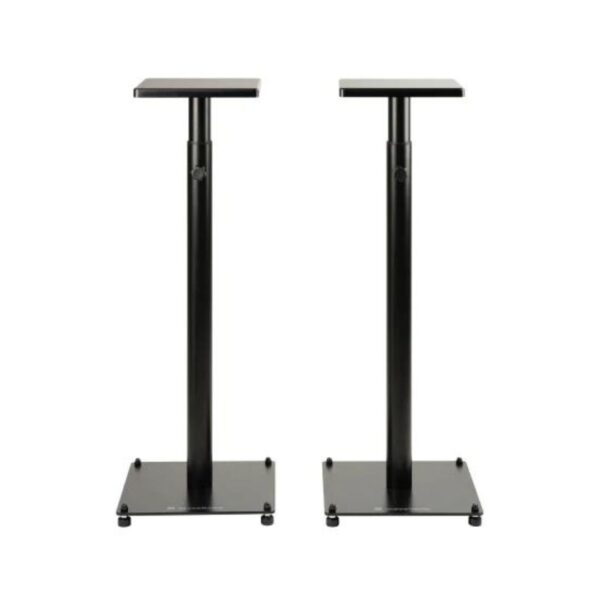

Bespeco – SH80NP – 2 Speaker Stands With Pouch
