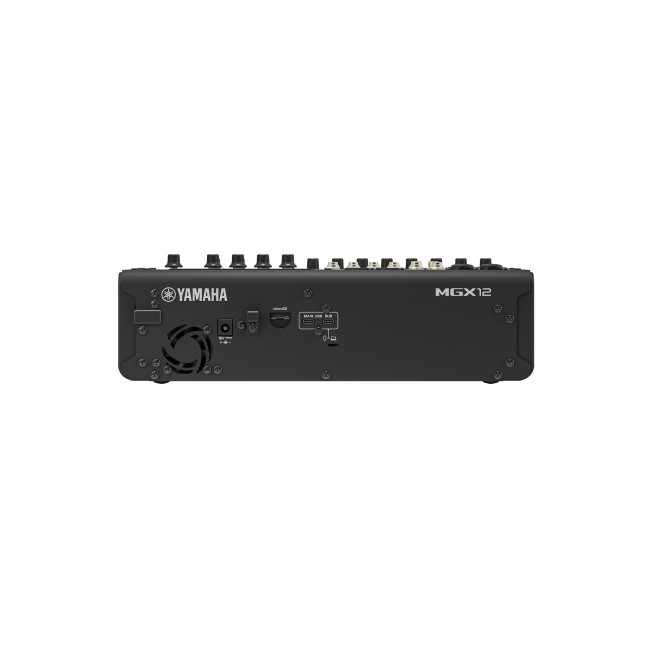

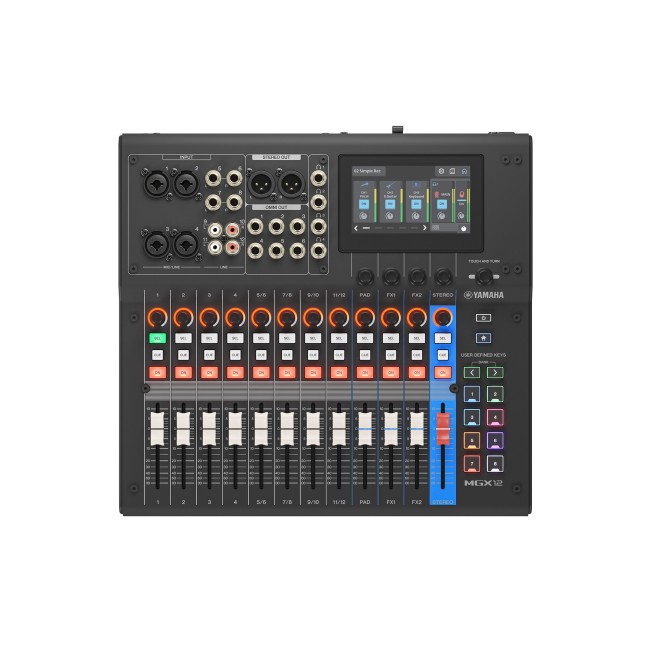

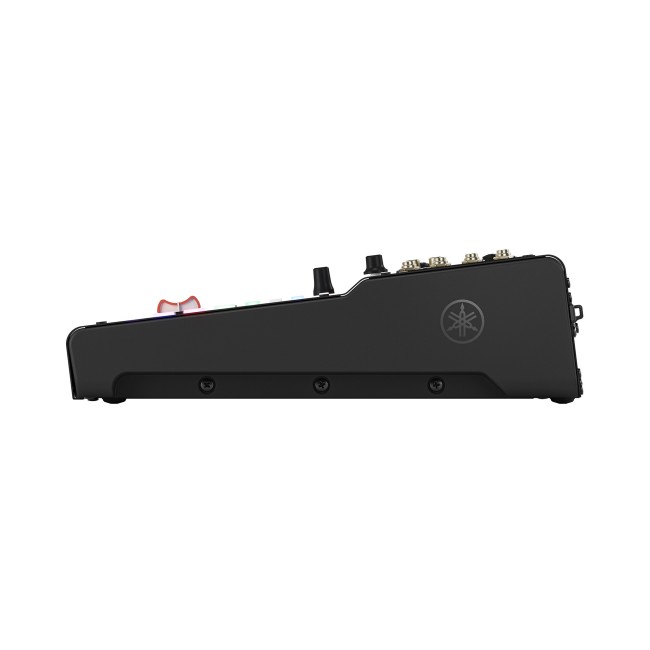

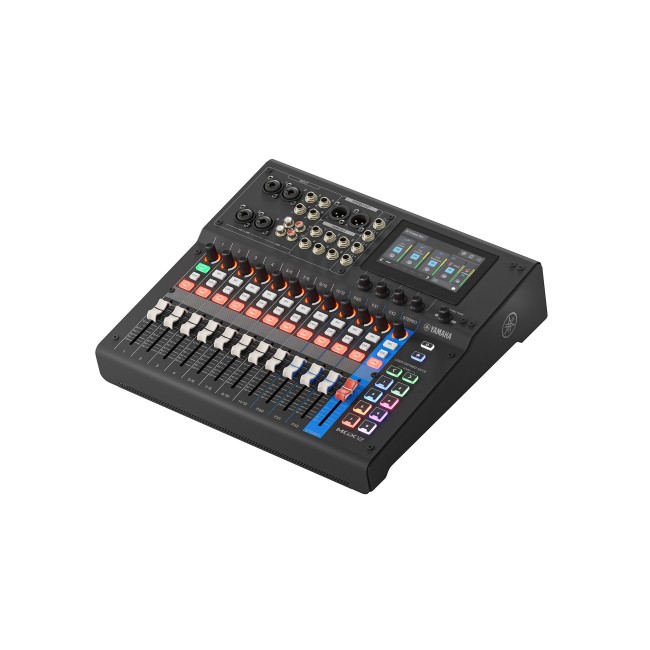

Yamaha MGX12 18-Channel Digital Mixing Console – Black

The Yamaha MGX12 18-Channel Digital Mixing Console is a professional-grade audio mixer designed for live performances, studio recording, podcasts, events, and broadcasting applications. Built with Yamaha’s renowned audio engineering technology, this digital mixing console delivers crystal-clear sound, low-noise performance, and powerful mixing capabilities for professionals and creators alike.

Featuring 18-channel input support, premium microphone preamps, intuitive controls, and built-in digital effects, the Yamaha MGX12 ensures smooth and accurate audio mixing in every environment. Its durable black finish and compact design make it suitable for portable setups, live venues, churches, schools, conference halls, and professional studios.

Whether you are managing live concerts, streaming sessions, band rehearsals, or recording vocals and instruments, the Yamaha MGX12 mixing console provides exceptional audio clarity and reliable performance.

Specifications

• General specifications	MGX12
  I/O Connectors – Analog Input	4 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
  Analog Output	2 XLR, 6 TRS
  USB TO HOST	2 (USB Type-C, MAIN: 32-bit/SUB: 16-bit)
  Phones	4 TRS (100 mW+100 mW @40 Ohm)
  DC	1 (Barrel type, DC power IN)
  microSD Card Slot	1
  Bluetooth	1 Bluetooth audio input (Bluetooth 5.0, A2DP)
  User Interface	4.3-inch touch screen, 12 x 60 mm fader, 12 x SEND knob, 5 x rotary encoder (4 x screen knob, 1 x “TOUCH AND TURN”)
  Recording & Playback – USB	18-track recording, 18-track playback
  USB (SUB)	2-track recording, 2-track playback
  microSD Card	Up to 16-track recording, 2-track playback
  Sampling frequency rate	96 kHz – 44.1 kHz
  Signal delay	Less than 0.4 ms (INPUT to STEREO OUT @ Fs=96 kHz)
  Frequency response	+0.0 / -0.5dB 20 Hz to 20 kHz, reference to the nominal output level @1 kHz, Input Gain= Min.
  Dynamic range	125 dB typ., DAC to STEREO OUT, 115 dB typ., INPUT to MAIN OUT, Input Gain=Min.
  Total harmonic distortion	Less than 0.002% 20 Hz to 20 kHz@+4 dBu, MIC INPUT to STEREO OUT, Input Gain=Min.
  Hum & noise level – Equivalent input noise	-128 dBu typ., Input Gain= Max.
  Residual output noise	-108 dBu, ST main off
  Crosstalk	-120 dB, adjacent INPUT/STEREO OUT channels, Input Gain= Min. @1 kHz
  Gain range	86 dB
  Power requirements	DC16 V/2.4 A, PA-300C AC power adapter (100 V-240 V, 50 Hz/60 Hz)
  Power consumption	38.4 W
  Dimensions – W	335 mm (13.2″)
  Dimensions – H	96 mm (3.8″)
  Dimensions – D	319 mm (12.6″)
  Net weight	3.9 kg (8.6 lb)
  Included Accessories	Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300 including power cord)
  Accessories	RK-MGX12 (Mixer Accessory)
  Operating temperature	0 – 40 °C
  Storage temperature	-20 – 60 °C
  Outline – Input Channels	4 mono + 4 stereo + 1 Sound Pad + 2 FX
  Mix Buses	8 (mono)
  Stereo Buses	1
  FX Buses	2
  Cue Buses	1
  On-board processors – DSP	Gate, Compressor, EQ, Sweet Spot Morphing Channel Strip (Comp & EQ), Guitar Amp Classics (Amp Simulator), Pitch Fix (Voice Changer), Ducker, Multi-Band Compressor, Compander, Delay, REV-X (Reverb)
